Nut type compensator
21/01/27 14:57:01
It is used in the short-network system of submerged arc furnace (calcium carbide furnace, ferroalloy furnace, industrial silicon furnace, yellow phosphorous furnace, etc.), and it is used for the connection between the secondary outlet end of the transformer and the fixed copper pipe (compensator type A connector and can be used as an electric arc furnace, steel furnace compensator), is also used to fix a water-cooled cable between the copper tube and the movable copper tube in the furnace (connecting the copper tile). The compensator can compensate for installation errors, thermal expansion and contraction, and absorb the vibration caused by the electromagnetic force of the short network.

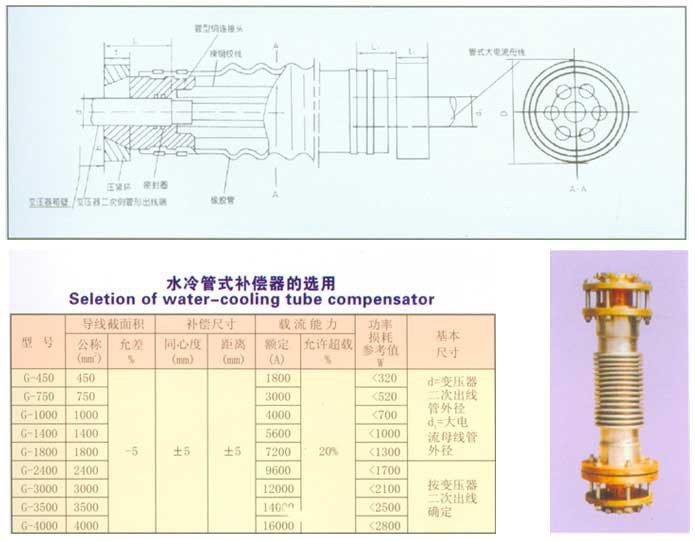

Note：

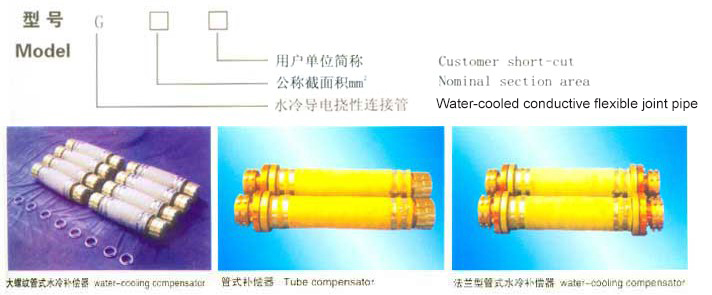

型号： model
导线截面积： Conductor cross-sectional area
公称： Nominal
允差： Tolerance
补偿尺寸：Compensation size
同心度： Concentricity
距离： distance
载流能力： Current-carrying capacity
额定电流： Rated current
允许超载： Allow overload
功率损耗参考值： Power loss reference value
基本尺寸： basic size
d=变压器二次出线管外径： d= outer diameter of secondary outlet pipe of transformer
d1=大电流母线管外径： d1=Outer diameter of high current busbar tube
按变压器二次出线确定： Determined by the secondary outlet of the transformer
