Conductive cross arm series

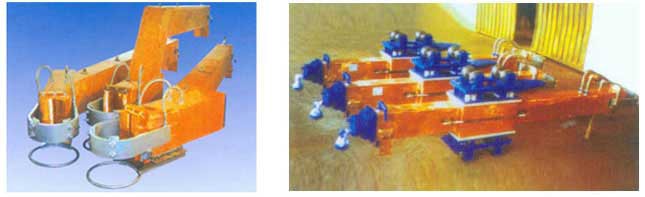

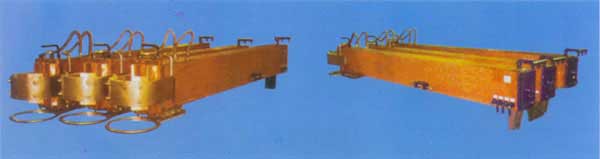

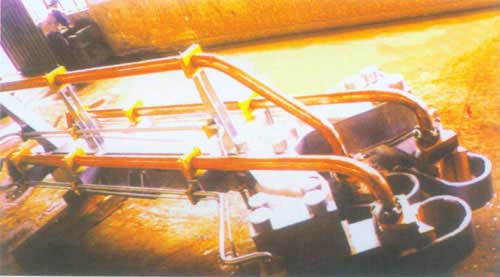

            30T power conductive cross arm                                        Trolley type conductive cross arm

Description:

1. The conductive cross arm provides water supply, and the size of the inlet and outlet pipes is determined by the design for the return water. It can also be used in series with the water-cooled cable according to user requirements;

2. The size listed in the electrode distribution circle is the distribution circle size that the device can provide;

3. Newly designed electric arc furnace and ladle furnace can provide conductive cross arm according to user requirements;

Please provide when ordering:

a. Cross arm length L and L1 size;

b. The size of the center distance between the columns B;

c. Electrode diameter φD and electrode distribution circle ruler φDCP;

d. The weight of the electrode cross arm before transformation (if water cooling is available, the weight of cooling water should be included);

e. The connection form and size of the cross arm and the electrode column;

f. Provide the actual available pressure of gas, water, water base, oil, water glycol;

g. Indicate the material of the composite board—copper steel and aluminum steel.

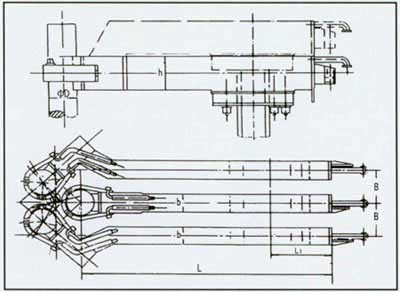

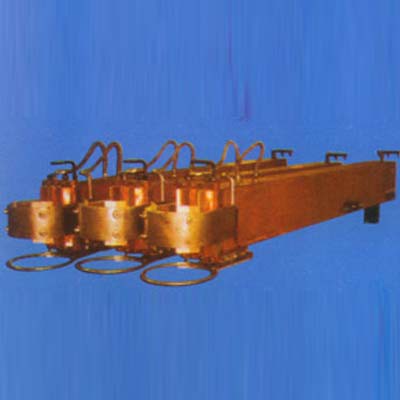

Single arm conductive cross arm

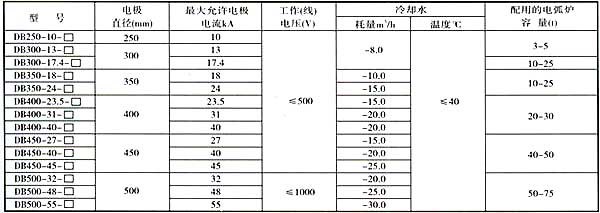

Basic parameter table of conductive cross arm

Note: 1. The length of the electrode arm and the connection method of the electrode column are in accordance with the agreement between the supplier and the buyer.
2. The model item is for reference only, and the production is in accordance with the contract.
