High efficiency and energy saving copper tile
21/01/27 14:34:01

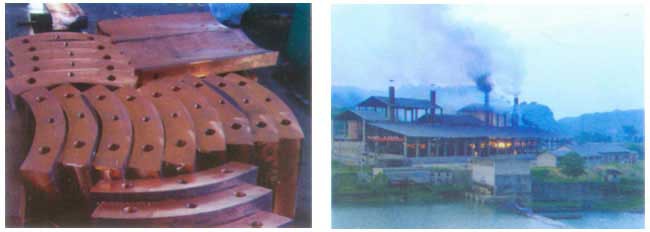

Provide energy-saving copper tiles for submerged arc furnaces (ferroalloy furnaces, calcium carbide furnaces, yellow phosphorous furnaces, etc.) according to user drawings.

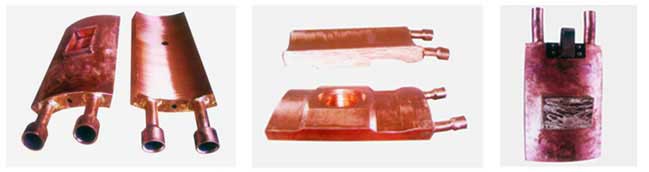

Direct-cooled red copper forged copper tiles are new products for submerged arc furnaces developed in 1998 and have formed a series. T2 red copper is used for pressure processing, and the structure is dense. The cooling channel is drilled with deep hole drilling, so it has good electrical conductivity and good cooling effect. Thereby, the power loss on the copper tile can be reduced and the service life can be improved.
Fastening copper tile Overall design and installation
Table of performance parameters of direct - cooled red copper forged tile
|
model |
Conductivity %★ |
ResistivityΩ.mm2/m |
ConductivityW/m.k |
Tensile strengthN/mm2 |
hardnessHB |
|
ZQSn6-6-3 |
11.5 |
0.15 |
92.1 |
195 |
65 |
|
ZH96 |
56 |
0.031 |
245 |
235 |
63.7 |
|
T2(forging) |
100 |
0.0175 |
390 |
240★★ |
54.3 |
|
Note: The conductivity of T2 copper is 100% ★★Annealed state |
|||||
Technical parameters of direct - cooled red copper forged tile
|
Model |
Electrode diameter |
Number of pieces on each phase electrode |
Permissible electrode current |
Basic dimensions |
|
DW-500-□ |
500 |
4 |
25 |
50×340×600 |
|
DW-600-□ |
600 |
4 |
34 |
55×400×700 |
|
DW-700-□ |
700 |
6 |
45 |
55×340×700 |
|
DW-800-□ |
800 |
6 |
54 |
60×380×800 |
|
DW-900-□ |
900 |
8 |
62 |
60×320×850 |
|
DW-1000-□ |
1000 |
8 |
75 |
65×360×900 |
|
DW-1100-□ |
1100 |
8 |
83 |
65×440×900 |
|
DW-1200-□ |
1200 |
8 |
91 |
65×440×900 |
|
Note: Special specifications are subject to agreement between the supplier and the buyer |
||||
Copper tile connecting pipe TRJ bare copper stranded wire
