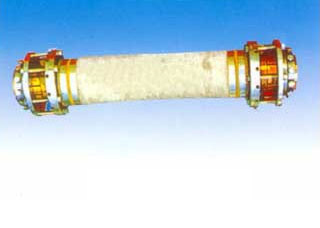

Flange water-cooled compensator

This product is used for the connection between the secondary outlet copper tube (generally the side outlet) of the electric furnace variator and the copper bar of the electric furnace short network bus to compensate for installation errors and absorb the vibration caused by the electromagnetic force of the transformer.

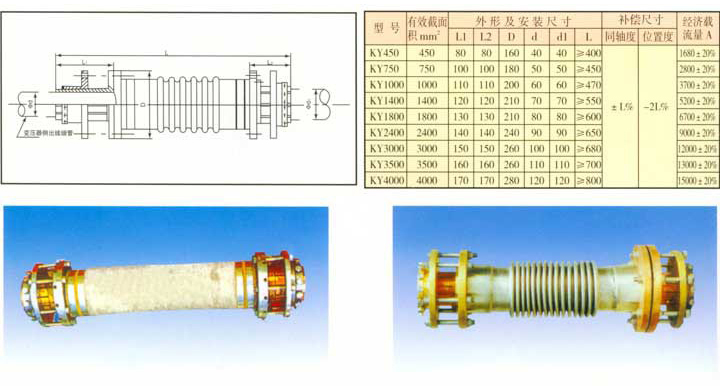

Technical parameters

Order notice:

1. The specification model and length L must be mentioned when ordering

2. When the ∮D and ∮D1 required by the user are inconsistent with this table, please put forward when ordering, and it can be adjusted according to user requirements during manufacturing.

3. The cooling water should meet the requirements of GB10067.1-88 "Basic Technical Requirements for Electric Heating Equipment".
